Part #: N109051
Screws for replacement pop out window frame to hinge
Application:Part #: 211837659
This nylon washer goes on the wing bolt keeping the bolt from chewing up the slide on the safari window. Washers sold individually 8 are required for Front Safaris and 4 are required for Rear Safaris.
Application:Part #: N107101
This is a list of the most common screws you might need..
Application:Part #: N185164
Screws for replacement pop out window Latches to Body
Application:Part #: N139681
This is a list of the most common screws you might need..
Application:Part #: N203551F
These are new hoses that are more resistant to Ethanol, meaning they last longer. This type of hose is what we now recommend.
Application:

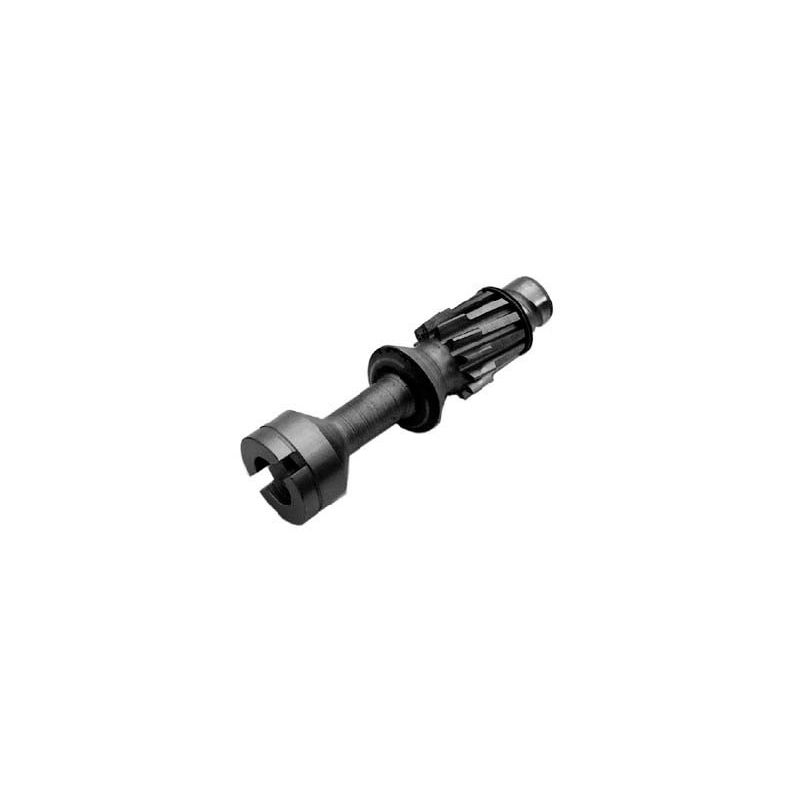

This gear matches up with the brass gear that is on the crank.
This gear matches up with the brass gear that is on the crank. Please read CRANK DISTRIBUTOR DRIVE GEAR for more info. We put this gear in before we put the case halves together. To do this, install the gear into the case with the two shims. Then install the distributor and bolt it down. Press up on the distributor drive gear and measure the endplay. You should have around .010" of play. If you have a lot more than that, add some shims until you get close. Once you've done that, align the clips of the distributor parallel to the cylinder and tighten your pinch clamp so the body of the distributor doesn't move. Now point the rotor of the distributor to the hash mark on the distributor body where the #1 cylinder would fire. Don't move anything from this point. Grab your crank by the #1 rod and set it down in the case and you will be in time.
Bug (Type 1): 61-79
Bus (Type 2): 60-71
Type 3: 61-74
Ghia: 62-73
Thing: 73-74
Race/Off-Road: 61-79
No customer reviews for the moment.
Part #: 111837418C
Window Guide Channel right
Application:Part #: 1101384
Whether your motor lives or not can depend upon this little shim.
Application:Part #: 211721374
Clutch Cable Lever
Application:Part #: 211943161D
License Light Lens Assembly, includes and attached bulb holder
Application:Part #: 1117024FAN
This is the same as the mesa cooler but with a fan mounted to it.
Application:Part #: 1127026PG
Fuel Pressure Gauge, 0-15 PSI, 1 1/2"
Application:Part #: 6415048A
This takes a turn and half out of your steering wheel.
Application:Part #: 131853535
This is the chrome trim that went on the front and sides of the Bug to dress it up.
Application:Part #: 211611301CGR
Master cylinder reservoir
Application:Bus (Type 2); 50-65
Offroad/Drag; All
Part #: 311119317A
These are also known as the "forget-me-nots".
Application:Part #: 113701421
Seat Rails, 1 Set per Seat, 2 sets per car
Application:Part #: 241881369
This is the padding that sits on top of the springs of the seat.
Application:Part #: 111937505M
This is a replacement fuse box.
Application:Part #: 1101030
Included in this kit are the bolts, nuts and washers required for "out to head" assembly of the engine..
Application:Part #: 025101177
Cylinder Liner O-Ring
Application:
This gear matches up with the brass gear that is on the crank.
